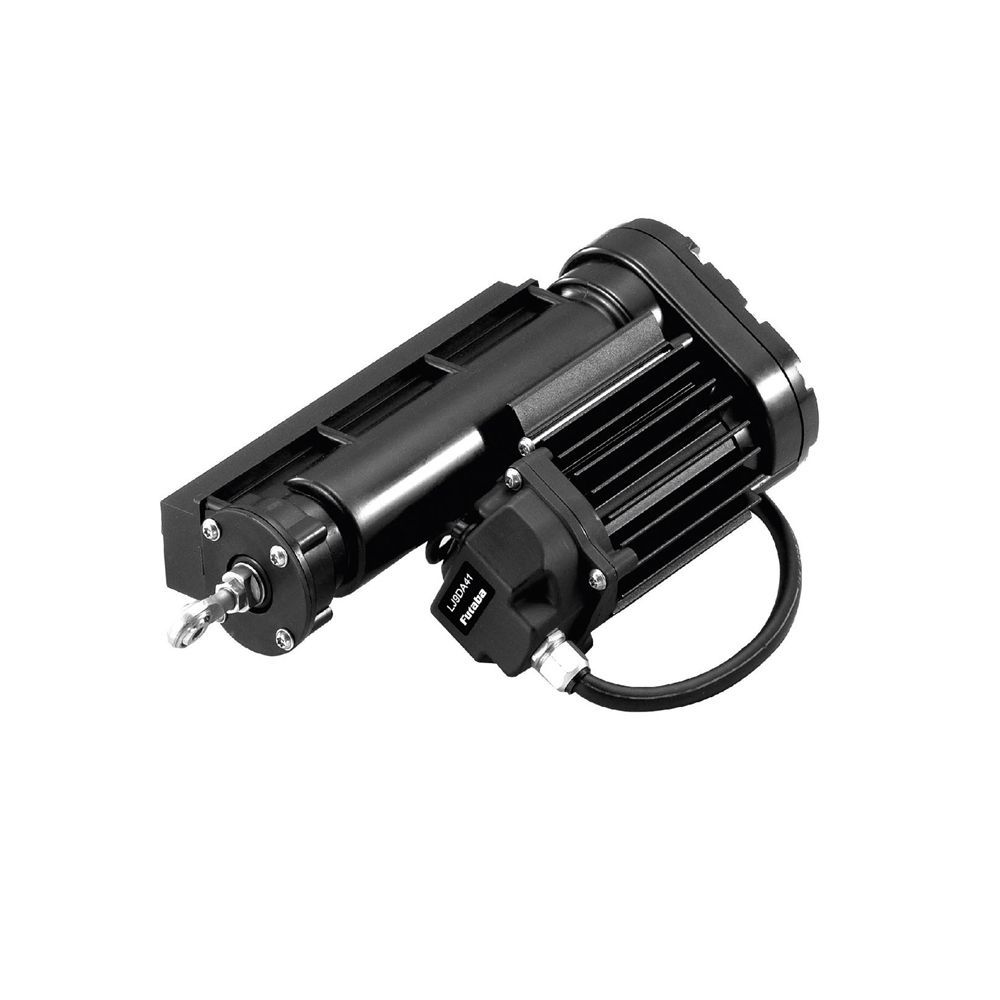

Our high powered series of servos are known as the AJ9DA series. These servos boast high torque and durability with wide ranges of voltage selection. This line of servos have an extensive list of applications and uses, such as large scaled f ixed wing type UAVs or carrier robots.

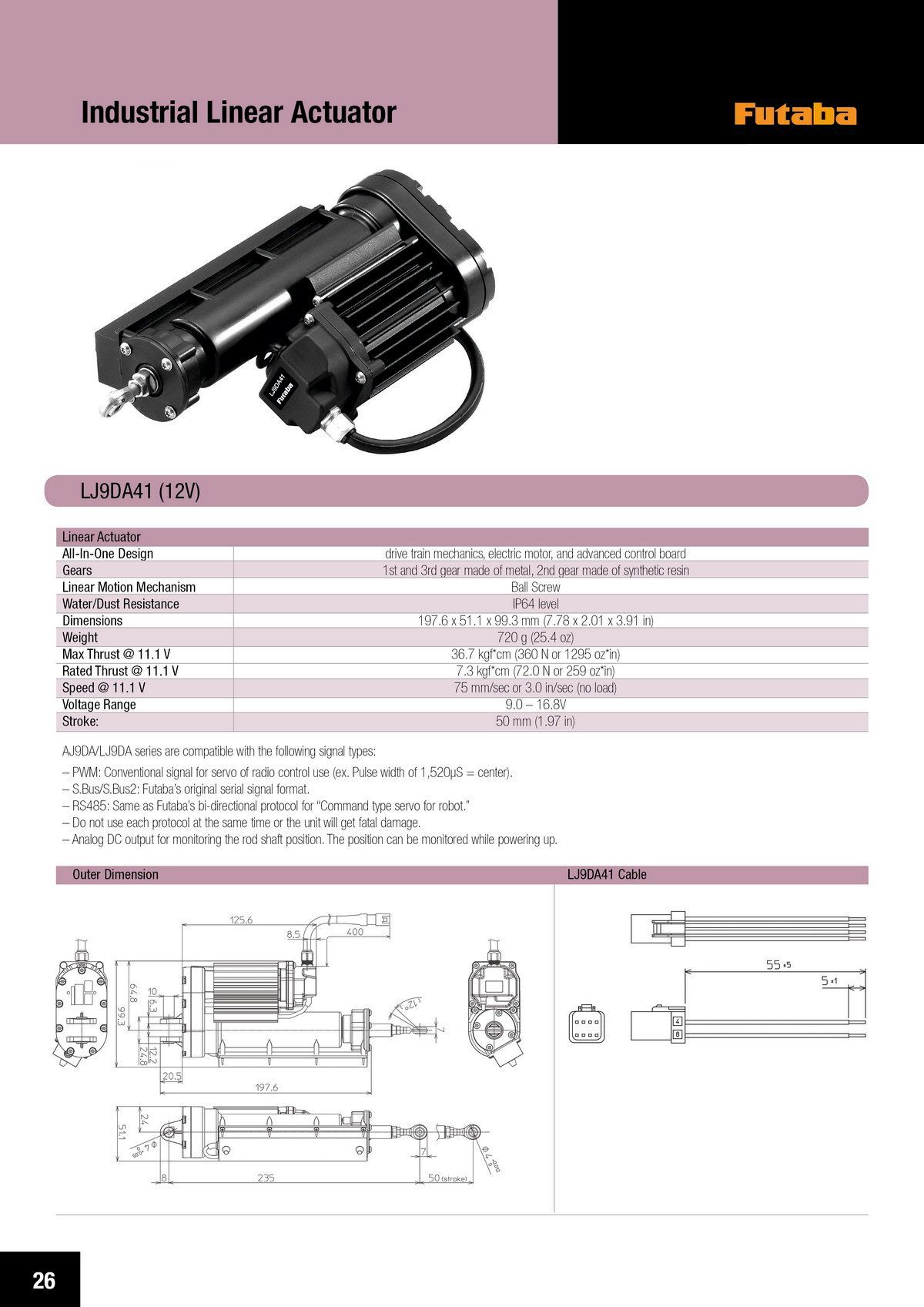

– All-In-One Design: drive train mechanics, electric motor, and advanced control board

– Gears: 1st and 3rd gear made of metal, 2nd gear made of synthetic resin

– Linear Motion Mechanism: Ball Screw

– Water/Dust Resistance: IP64 level

– Dimensions: 197.6 x 51.1 x 99.3 mm (7.78 x 2.01 x 3.91 in)

– Weight: 720 g (25.4 oz)

– Max Thrust @ 11.1 V: 36.7 kgf*cm (360 N or 1295 oz*in)

– Rated Thrust @ 11.1 V: 7.3 kgf*cm (72.0 N or 259 oz*in)

– Speed @ 11.1 V: 75 mm/sec or 3.0 in/sec (no load)

– Voltage Range: 9.0 – 16.8V

– Stroke: 50 mm (1.97 in)
