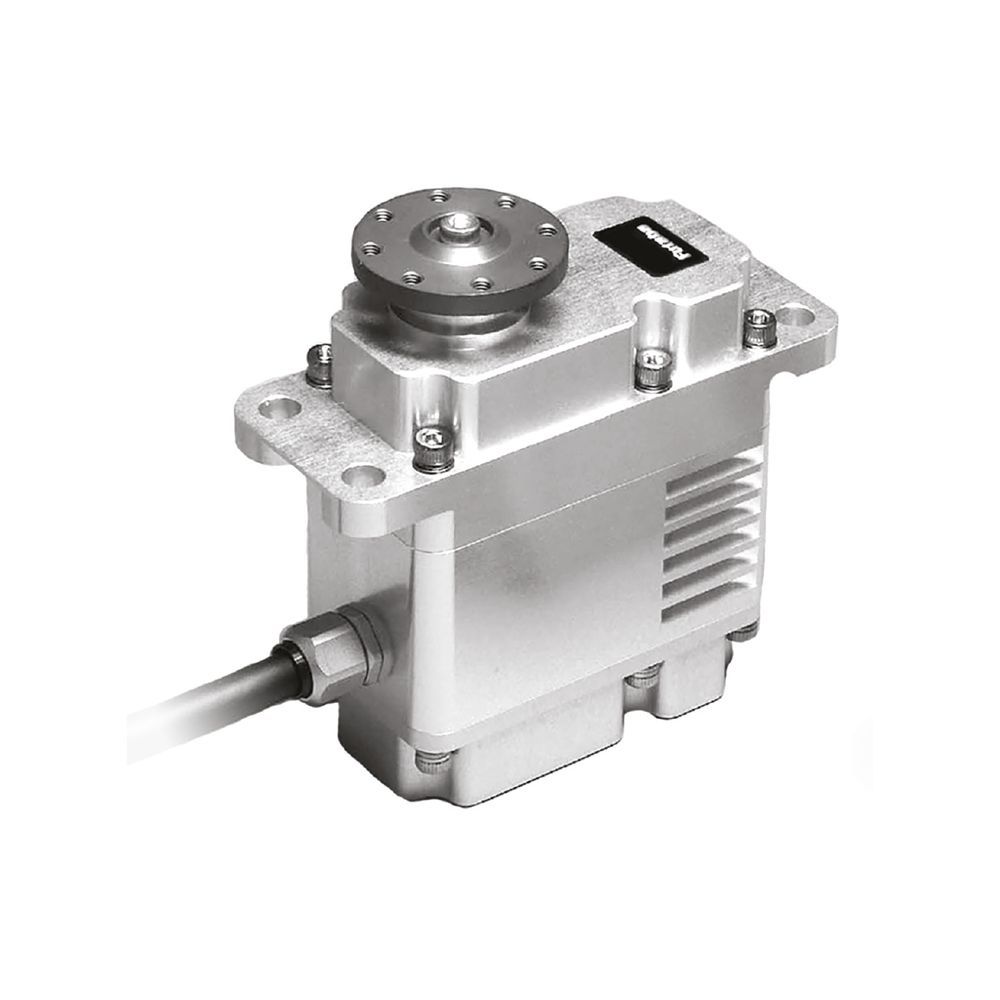

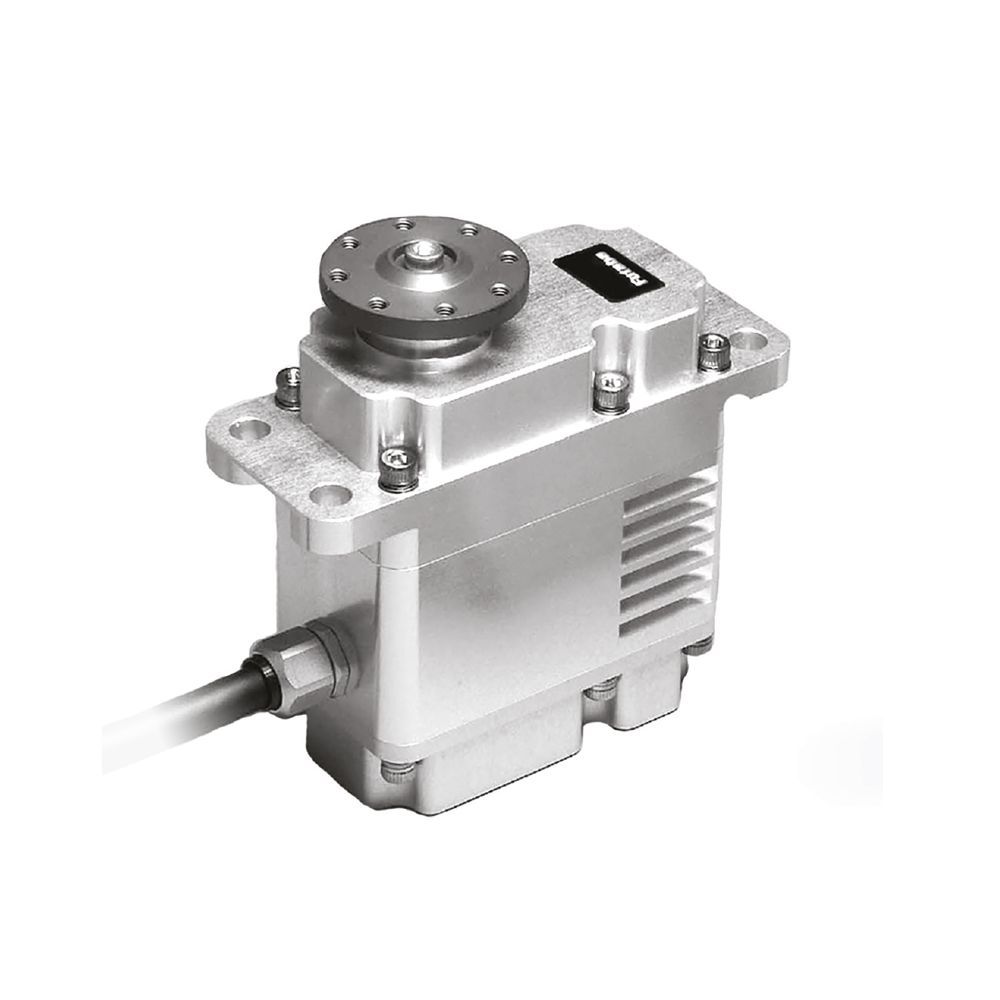

Our high powered series of servos are known as the AJ9DA series. These servos boast high torque and durability with wide ranges of voltage selection. This line of servos have an extensive list of applications and uses, such as large scaled fixed wing type UAVs or carrier robots.

– All metal construction including casing, gears, and output-horn.

– Output Cable – Shielded Fixed/Non-Removable

– IP64 level water/dust resistance

– Dimensions – 64.2 x 34.0 x 73.7 mm or 2.53 x 1.34 x 2.90 in

– Weight – 337 g or 11.9 oz

– Torque at 11.1 V – 84 kgf*cm or 8.24 N-m or 1167 oz*in

– Speed at 11.1 V – 0.27 sec/60 degrees or 222 degree/sec

Cad File Download

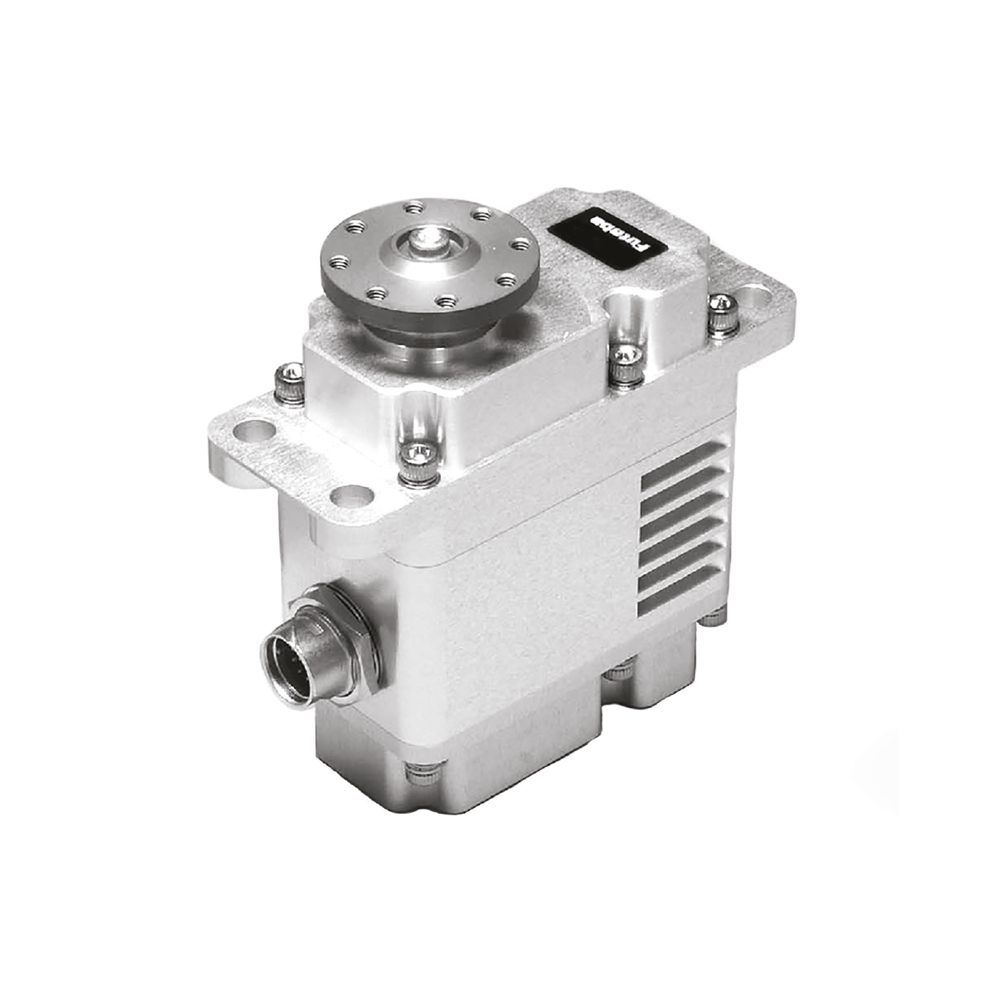

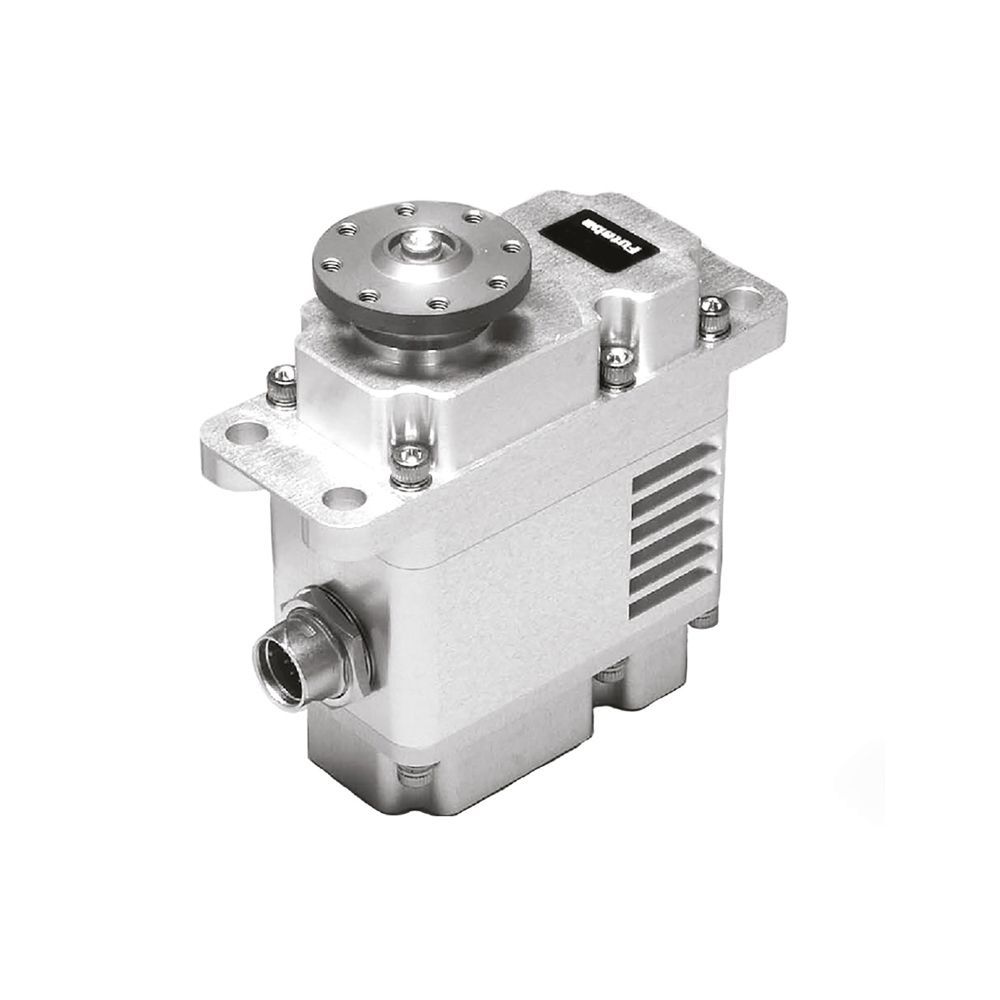

Our high powered series of servos are known as the AJ9DA series. These servos boast high torque and durability with wide ranges of voltage selection. This line of servos have an extensive list of applications and uses, such as large scaled fixed wing type UAVs or carrier robots.

– All metal construction including casing, gears, and output-horn.

– Output Cable – Shielded Removable

– IP64 level water/dust resistance

– Dimensions – 64.2 x 34.0 x 73.7 mm or 2.53 x 1.34 x 2.90 in

– Weight – 337 g or 11.9 oz

– Torque at 11.1 V – 84 kgf*cm or 8.24 N-m or 1167 oz*in

– Speed at 11.1 V – 0.27 sec/60 degrees or 222 degree/sec

Cad File Download

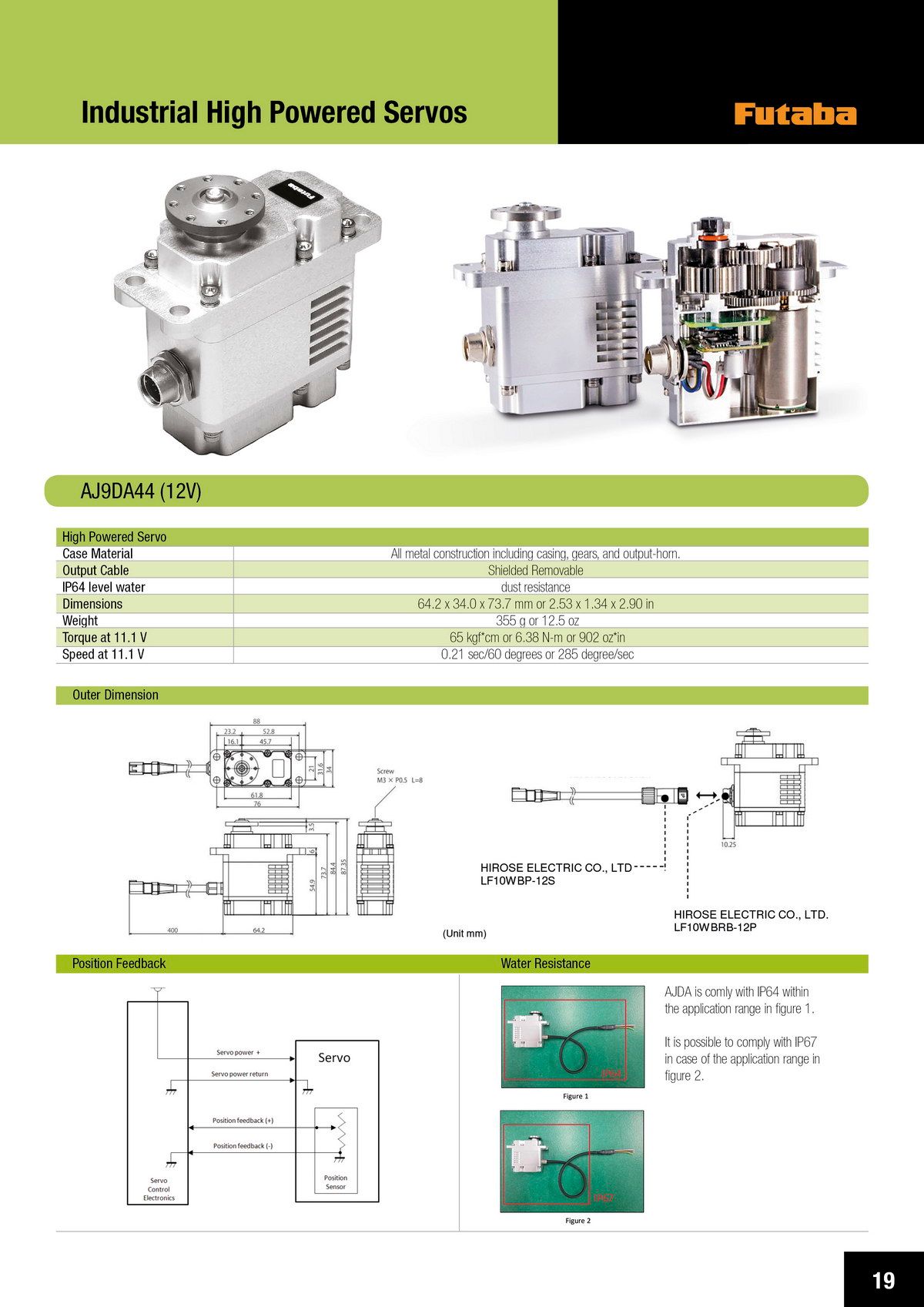

Our high powered series of servos are known as the AJ9DA series. These servos boast high torque and durability with wide ranges of voltage selection. This line of servos have an extensive list of applications and uses, such as large scaled fixed wing type UAVs or carrier robots.

– All metal construction including casing, gears, and output-horn.

– Output Cable – Shielded Removable

– IP64 level water/dust resistance

– Dimensions – 64.2 x 34.0 x 73.7 mm or 2.53 x 1.34 x 2.90 in

– Weight – 355 g or 12.5 oz

– Torque at 11.1 V – 65 kgf*cm or 6.38 N-m or 902 oz*in

– Speed at 11.1 V – 0.21 sec/60 degrees or 285 degree/sec

Cad File Download

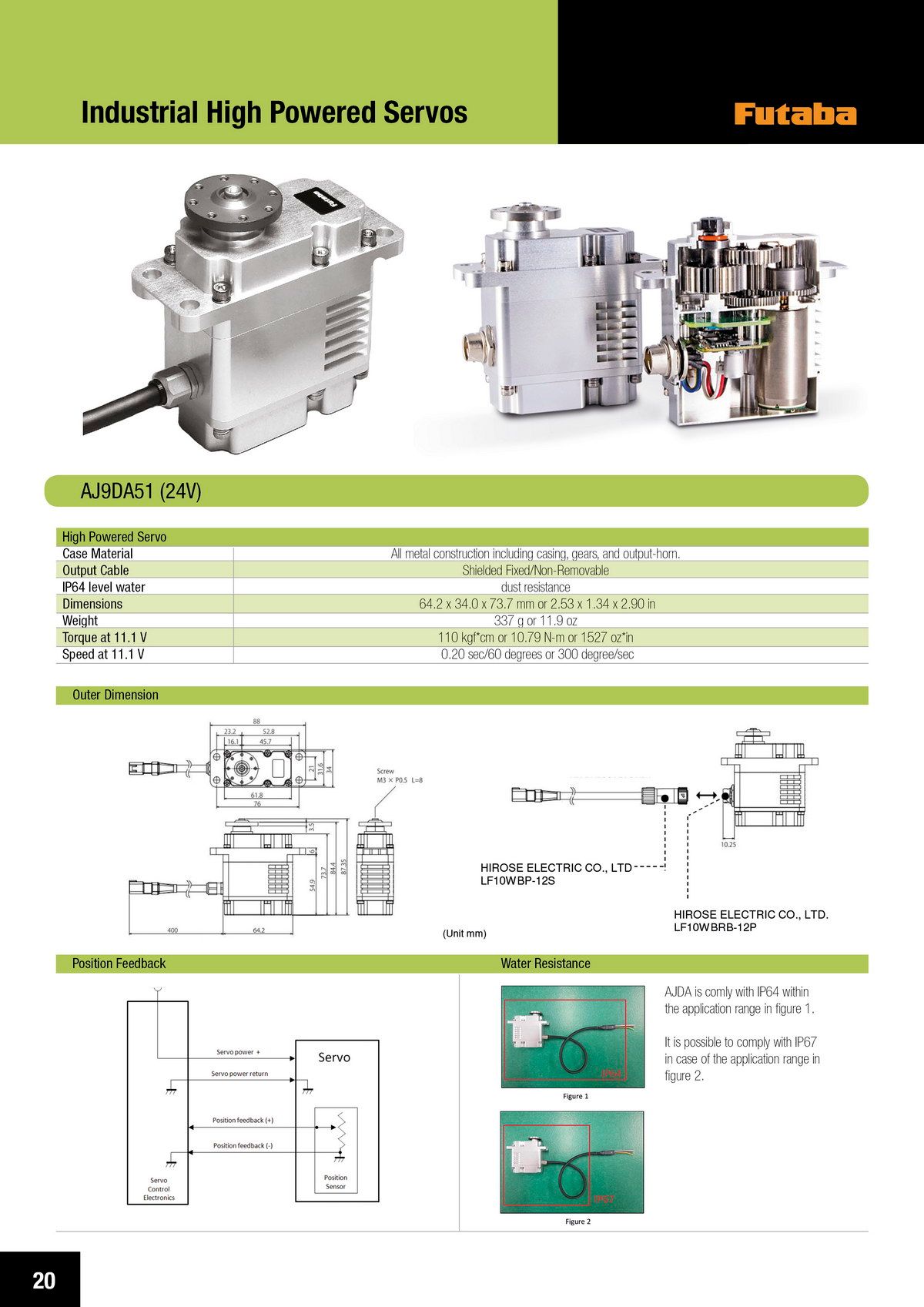

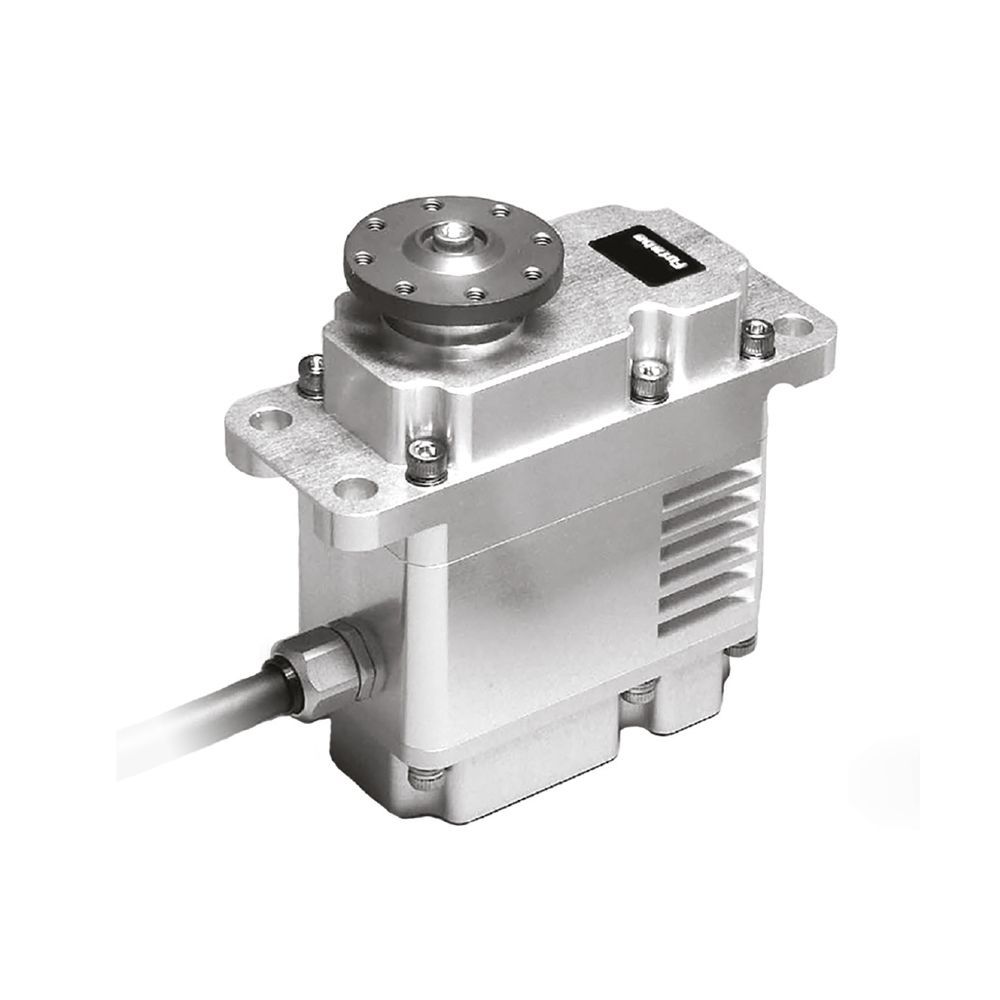

Our high powered series of servos are known as the AJ9DA series. These servos boast high torque and durability with wide ranges of voltage selection. This line of servos have an extensive list of applications and uses, such as large scaled fixed wing type UAVs or carrier robots.

– All metal construction including casing, gears, and output-horn.

– Output Cable – Shielded Fixed/Non-Removable

– IP64 level water/dust resistance

– Dimensions – 64.2 x 34.0 x 73.7 mm or 2.53 x 1.34 x 2.90 in

– Weight – 337 g or 11.9 oz

– Torque at 11.1 V – 110 kgf*cm or 10.79 N-m or 1527 oz*in

– Speed at 11.1 V – 0.20 sec/60 degrees or 300 degree/sec

Cad File Download

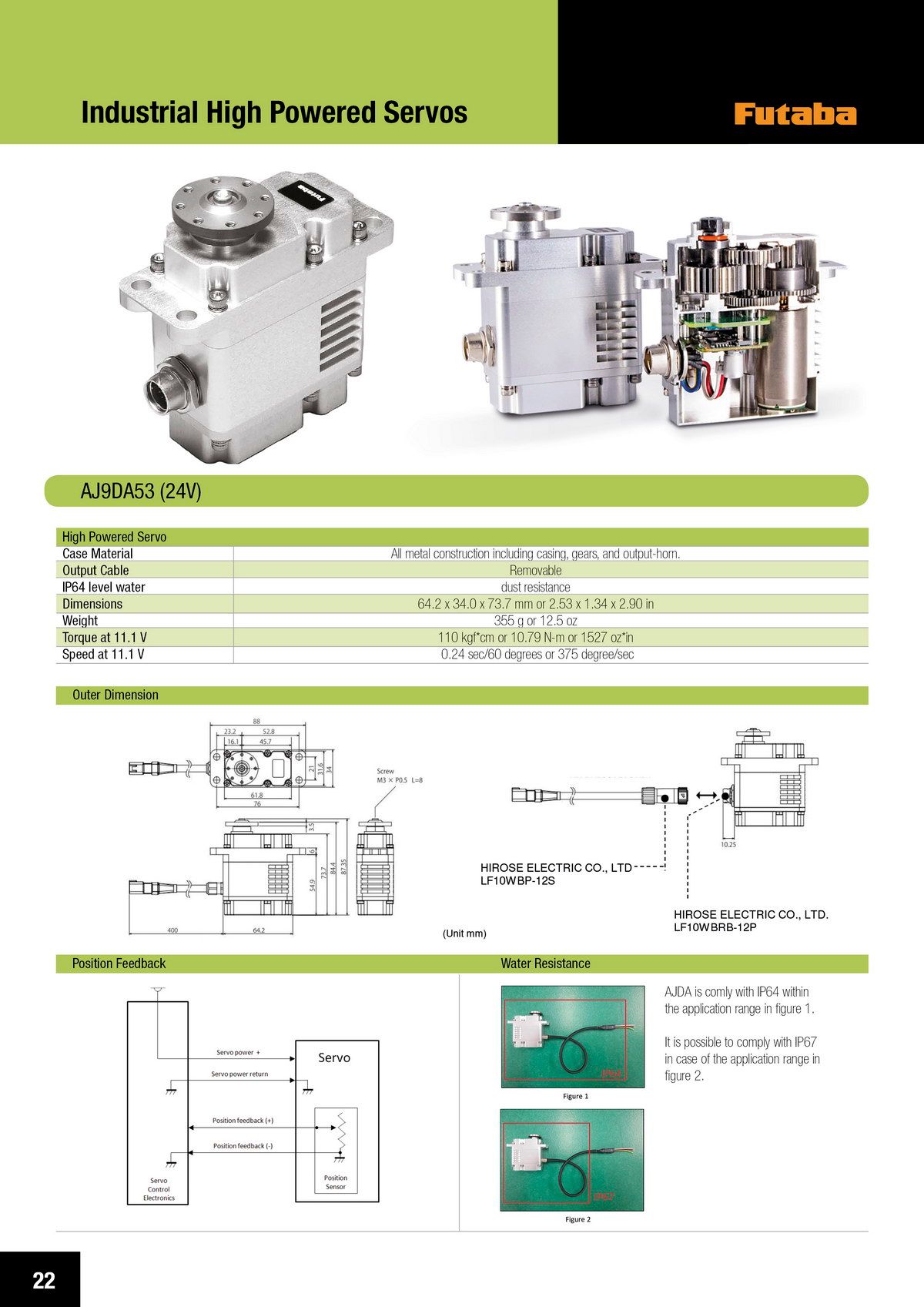

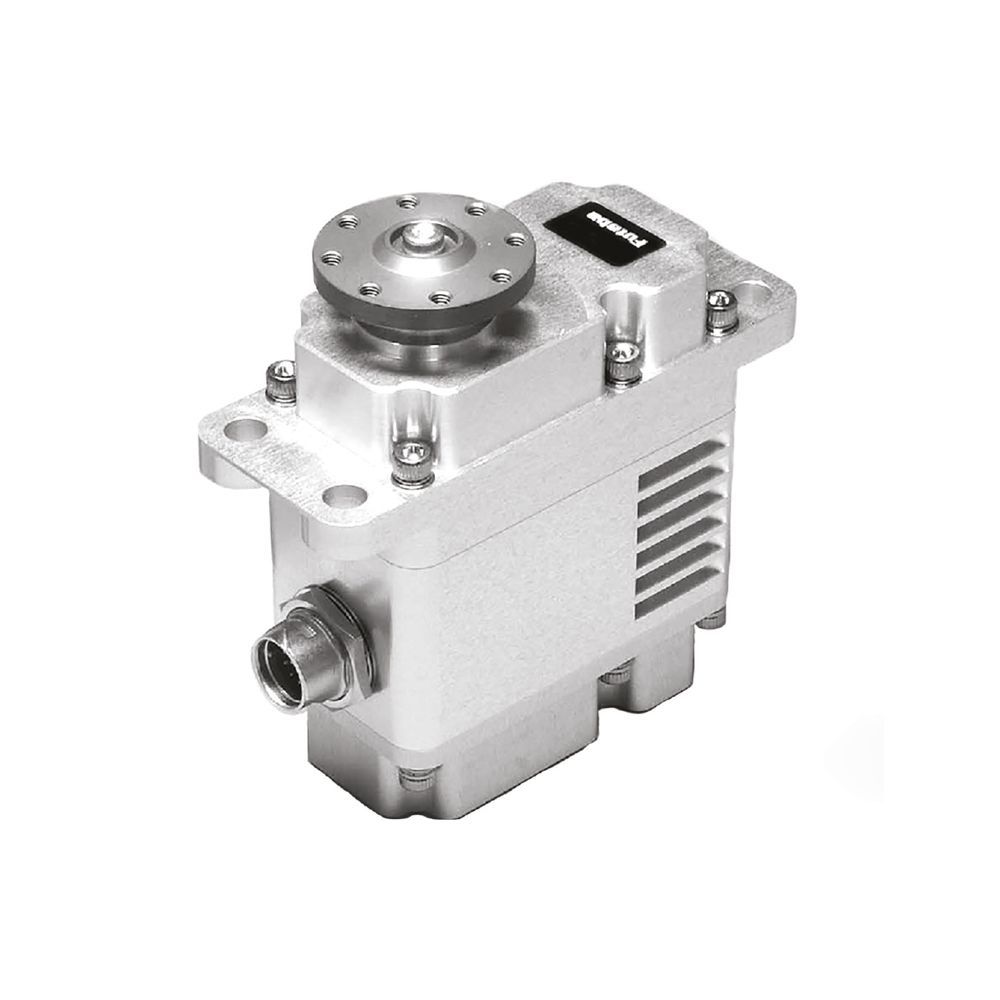

Our high powered series of servos are known as the AJ9DA series. These servos boast high torque and durability with wide ranges of voltage selection. This line of servos have an extensive list of applications and uses, such as large scaled fixed wing type UAVs or carrier robots.

– All metal construction including casing, gears, and output-horn.

– Output Cable – Removable

– IP64 level water/dust resistance

– Dimensions – 64.2 x 34.0 x 73.7 mm or 2.53 x 1.34 x 2.90 in

– Weight – 355 g or 12.5 oz

– Torque at 24 V – 110 kgf*cm or 10.79 N-m or 1527 oz*in

– Speed at 24 V – 0.24 sec/60 degrees or 375 degree/sec

Cad File Download

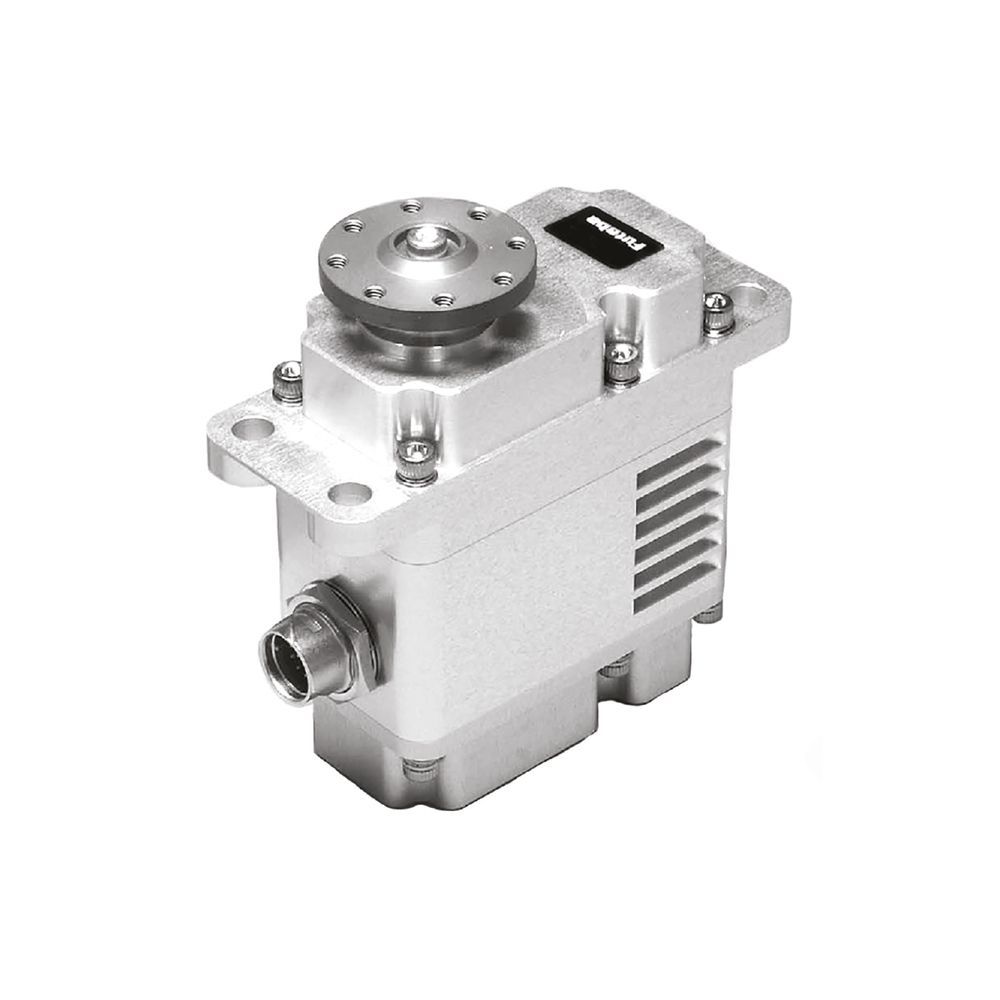

Our high powered series of servos are known as the AJ9DA series. These servos boast high torque and durability with wide ranges of voltage selection. This line of servos have an extensive list of applications and uses, such as large scaled fixed wing type UAVs or carrier robots.

– All metal construction including casing, gears, and output-horn.

– Output Cable – Removable

– IP64 level water/dust resistance

– Dimensions – 64.2 x 34.0 x 73.7 mm or 2.53 x 1.34 x 2.90 in

– Weight – 355 g or 12.5 oz

– Torque at 11.1 V – 87 kgf*cm or 8.53 N-m or 1208 oz*in

– Speed at 11.1 V – 0.16 sec/60 degrees or 375 degree/sec

Cad File Download
