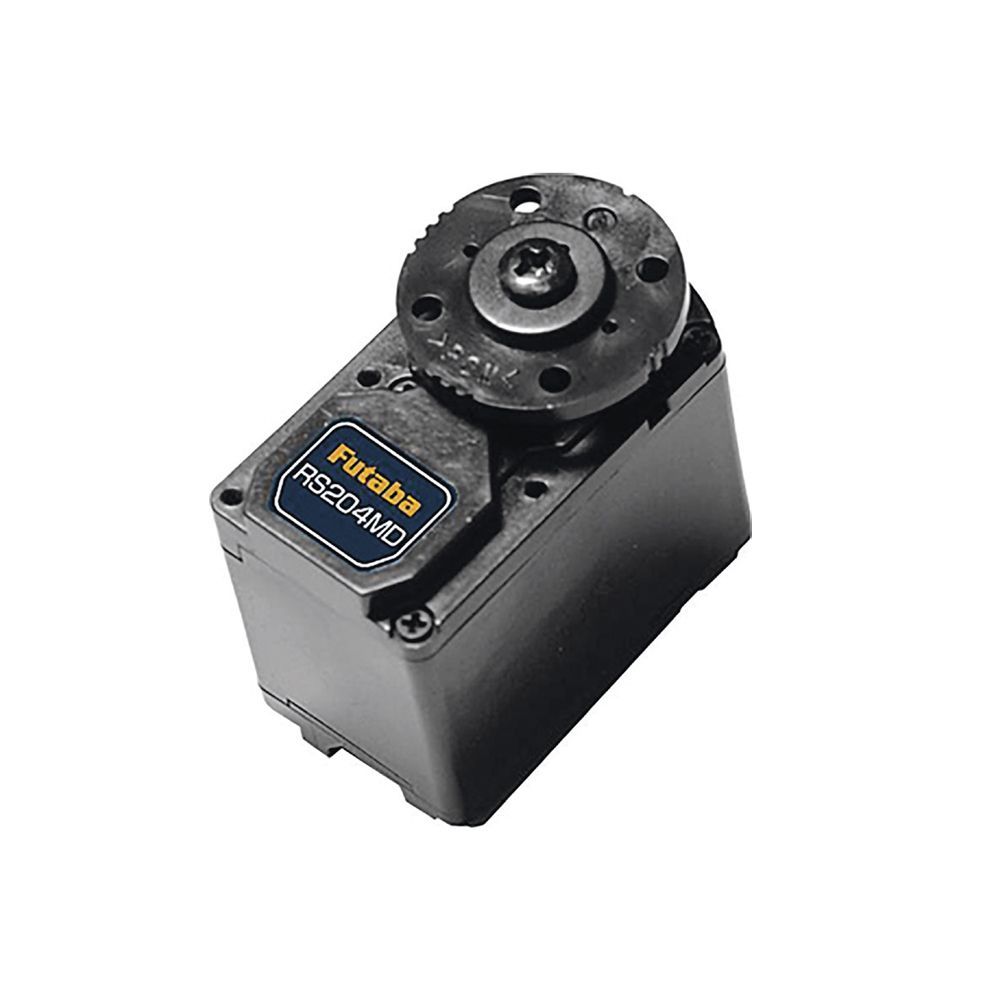

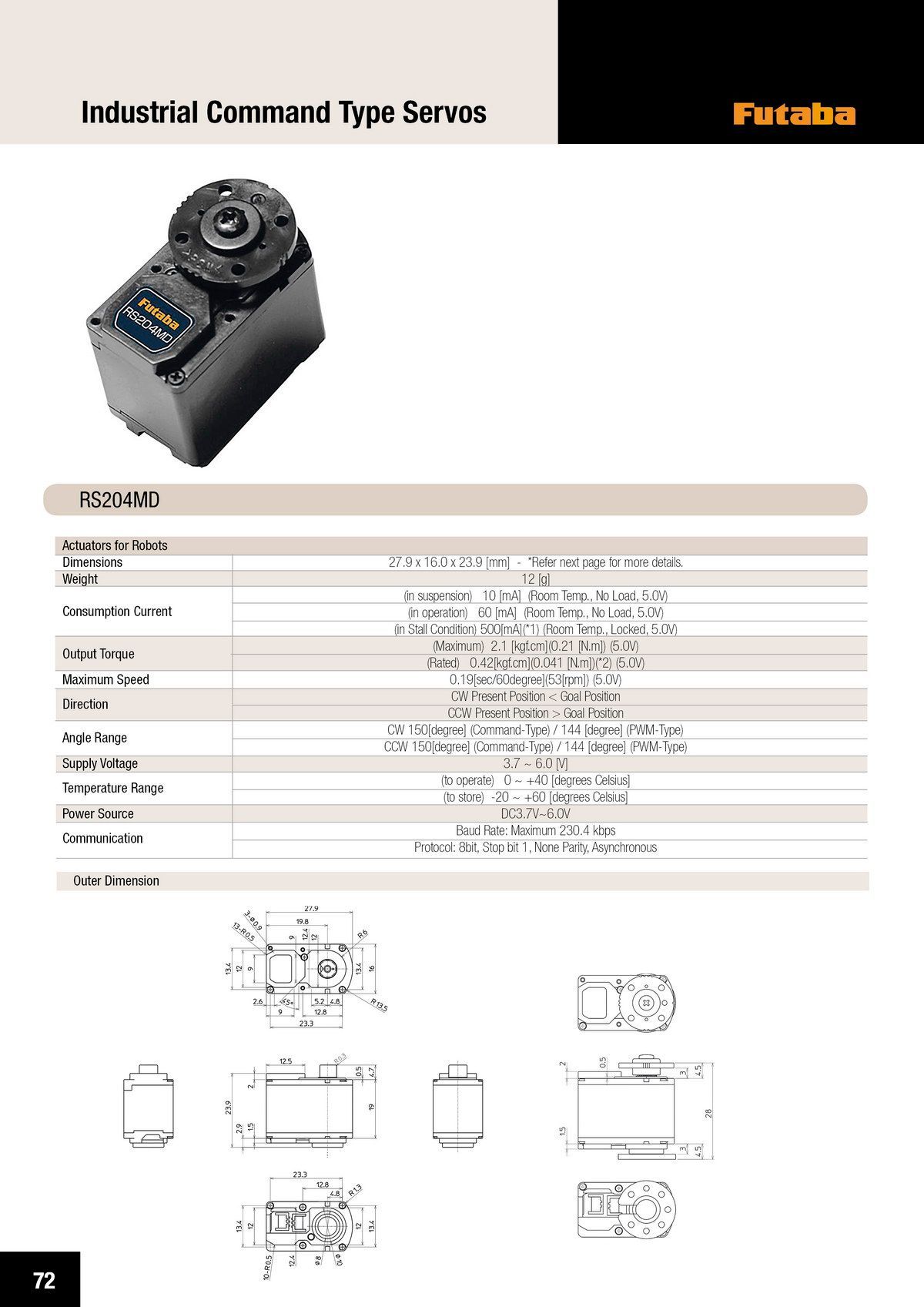

The representative product is “Command-Type Servo”. It is used for not only a hobby and the education as humanoid-robot etc. but also a utility use and an industrial use as manipulators etc. Command-Type Servo is an actuator module with control unit to direct the angle of output axis. It has a serial communication interface and several sensors in addition to a DC motor, gears, and servo control circuit. So it functions as both a actuator and a sensor.

Max Torque : 2.1 [kgf·cm]

Max Speed : 0.19 [s/60deg]

Weight : 12 [g]

Voltage : 5.0[V] (3.7～6.0 [V])

Movable Range : 300 [deg]

Communication : TTL or PWM

Cad File Download

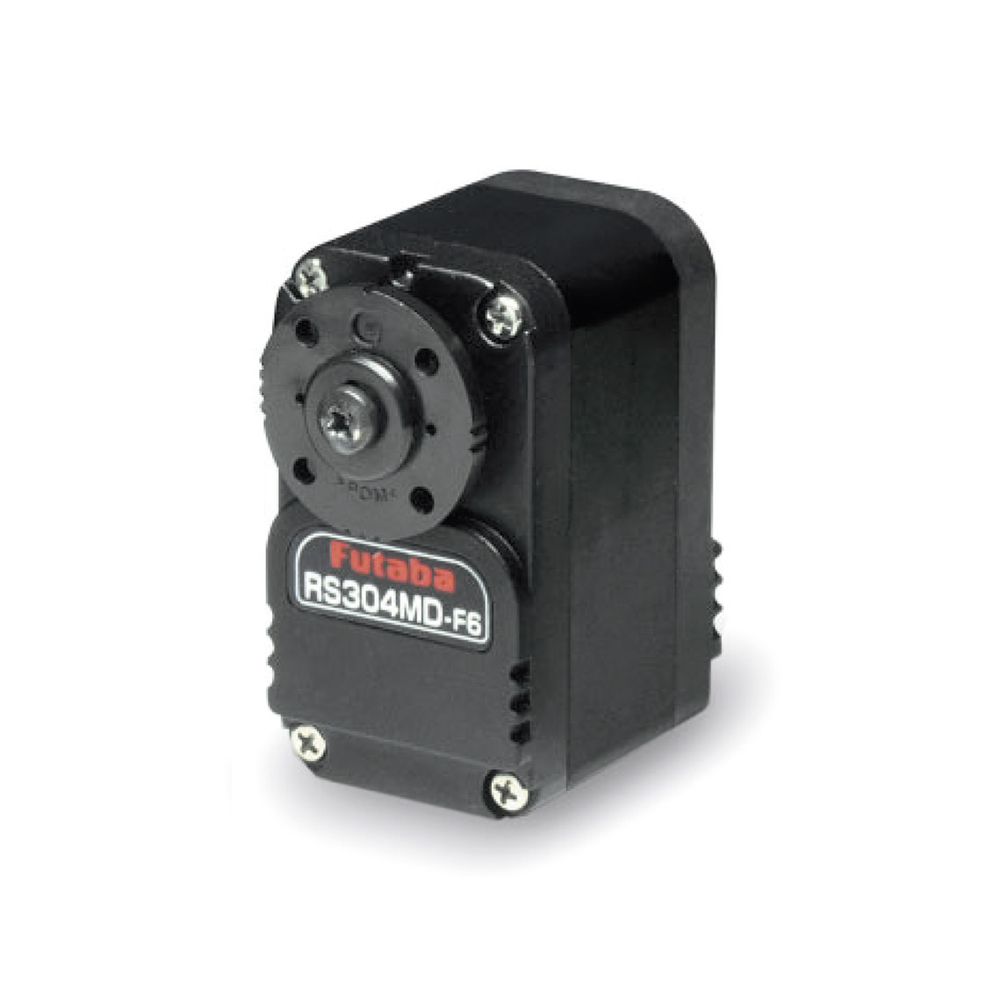

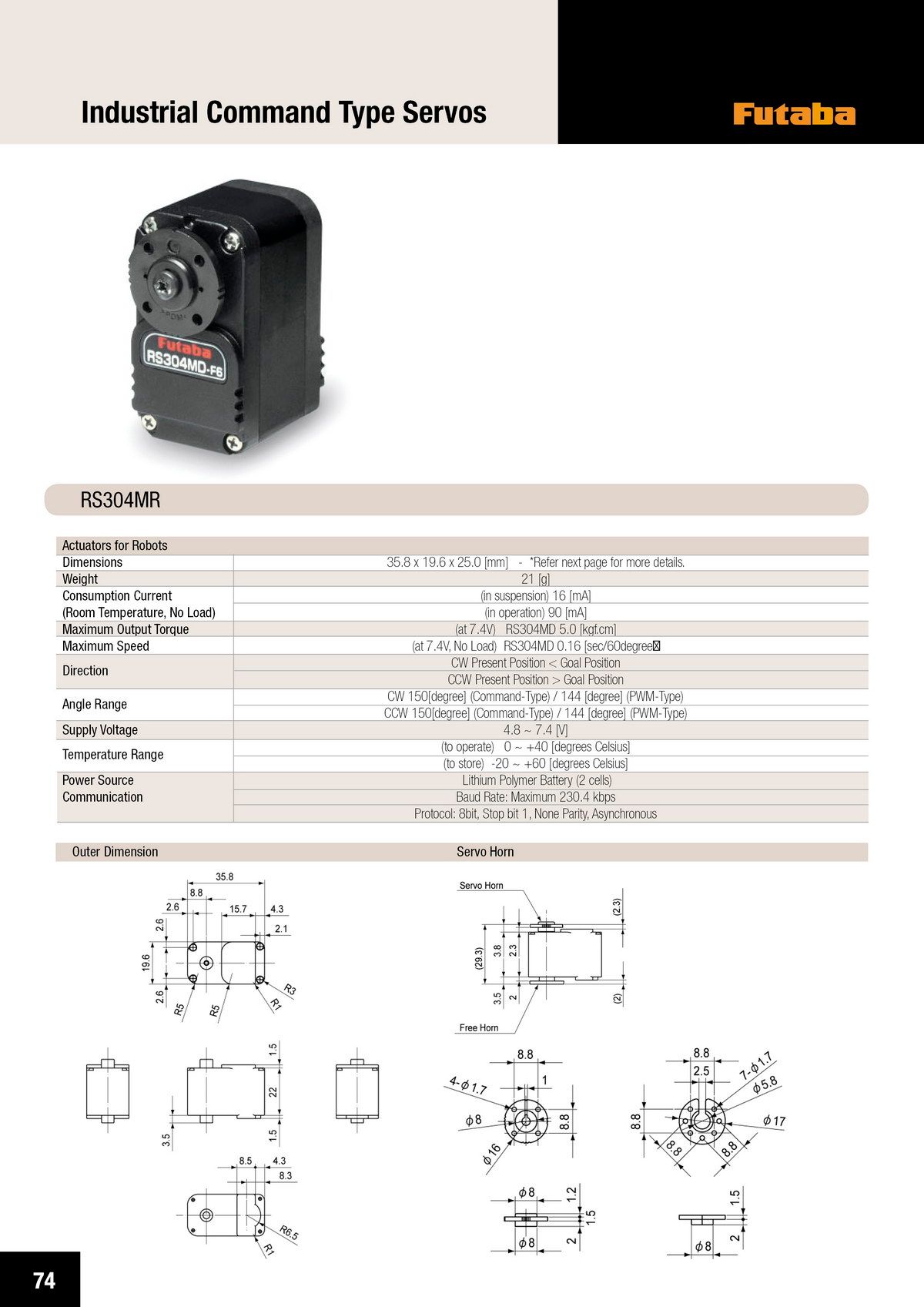

 The representative product is “Command-Type Servo”. It is used for not only a hobby and the education as humanoid-robot etc. but also a utility use and an industrial use as manipulators etc. Command-Type Servo is an actuator module with control unit to direct the angle of output axis. It has a serial communication interface and several sensors in addition to a DC motor, gears, and servo control circuit. So it functions as both a actuator and a sensor.

Max Torque : 5.0 [kgf·cm]

Max Speed : 0.16 [sec/60deg]

Weight : 21 [g]

Voltage : 7.4 [V]

Movable Range : 300 [deg]

Communication : TTL or PWM

Cad File Download
