Our brushless motor series of servos are easily identifiable with product names beginning with “BLA”. These servos provide great performance, durability, and reliability under the toughest conditions. With varying voltage, sizes, and torques available, there is a brushless Futaba servo for every project.

– Metal gear construction with aluminium casing.

– Cable length – 400 mm

– IP64 level water/dust resistance

– Interface – 4-Pole Connector (Signal, V+, GND, Body-GND)

– Dimensions – 40.5 x 21.0 x 38.4 mm or 1.59 x 0.83 x 1.51 in

– Weight – 79 g or 2.79 oz

– Torque at 7.4V – 37 kgf*cm or 514 oz*in

– Speed at 7.4V – 0.11 sec/60 degrees

Cad File Download

Our brushless motor series of servos are easily identifiable with product names beginning with “BLA”. These servos provide great performance, durability, and reliability under the toughest conditions. With varying voltage, sizes, and torques available, there is a brushless Futaba servo for every project.

– Metal gear construction with aluminium casing.

– Cable length – 400 mm

– IP64 level water/dust resistance

– 6-Pole Connector (Signal, V+, GND, Position Monitor (+/-), Body-GND)

– Dimensions – 40.5 x 21.0 x 38.4 mm or 1.59 x 0.83 x 1.51 in

– Weight – 100 g or 3.53 oz

– Torque at 14.8V – 24 kgf*cm or 333 oz*in

– Speed at 14.8V – 0.05 sec/60 degrees

Cad File Download

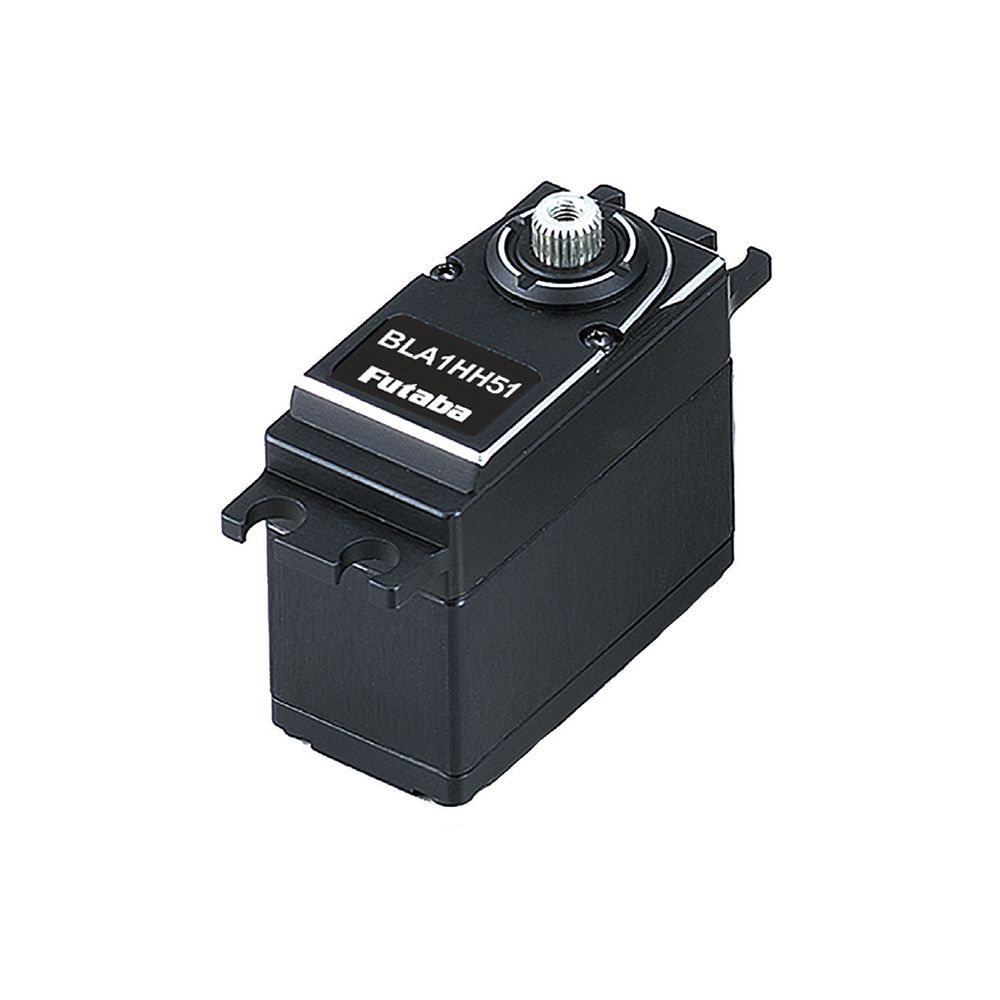

Our brushless motor series of servos are easily identifiable with product names beginning with “BLA”. These servos provide great performance, durability, and reliability under the toughest conditions. With varying voltage, sizes, and torques available, there is a brushless Futaba servo for every project.

– Metal gear construction.

– Aluminum casing.

– Position feedback.

– Cable length – 400 mm

– Control Signal – PWM (N=1,520μS), S.Bus/S.Bus2

– Dimensions – 40.5 x 21.0 x 38.4 mm or 1.59 x 0.83 x 1.51 in

– Weight – 100 g or 3.53 oz

– Torque at 28V – 43.0 kgf*cm or 597.2 oz*in

– Speed at 28V – 0.11 sec/60 degrees

Cad File Download

Our brushless motor series of servos are easily identifiable with product names beginning with “BLA”. These servos provide great performance, durability, and reliability under the toughest conditions. With varying voltage, sizes, and torques available, there is a brushless Futaba servo for every project.

– Resin 1st and metal 2nd and 3rd gear construction.

– Resin upper casing and aluminum middle/bottom casing.

– Cable length – 100 mm

– Control Signal – PWM (N=1,520μS), S.Bus/S.Bus2

– 3-Pole Connector (Signal, V+, GND)

– Dimensions – 40.5 x 21.0 x 38.4 mm or 1.59 x 0.83 x 1.51 in

– Weight – 74 g or 2.61 oz

– Torque at 7.4V – 37.0 kgf*cm or 514 oz*in

– Speed at 7.4V – 0.11 sec/60 degrees

Cad File Download

Our brushless motor series of servos are easily identifiable with product names beginning with “BLA”. These servos provide great performance, durability, and reliability under the toughest conditions. With varying voltage, sizes, and torques available, there is a brushless Futaba servo for every project.

– Metal gear construction with resin casing.

– Cable length – 200 mm

– Control Signal – PWM (N=1,520μS), S.Bus/S.Bus2

– 3-Pole Connector (Signal, V+, GND)

– Dimensions – 33.0 x 15.0 x 27.1 mm or 1.30 x 0.59 x 1.07 in

– Weight – 28 g or 0.99 oz

– Torque at 7.4V – 7.6 kgf*cm or 106 oz*in

– Speed at 7.4V – 0.10 sec/60 degrees

Cad File Download

Our brushless motor series of servos are easily identifiable with product names beginning with “BLA”. These servos provide great performance, durability, and reliability under the toughest conditions. With varying voltage, sizes, and torques available, there is a brushless Futaba servo for every project.

– Metal gear construction with aluminium casing.

– Cable length – 150 mm

– Control Signal – PWM, S.Bus/S.Bus2

– 3-Pole Connector (Signal, V+, GND)

– Dimensions – 28.6 x 13.0 x 33.0 mm or 1.13 x 0.51 x 1.3 in

– Weight – 33 g or 1.16 oz

– Torque at 7.4V – 7.35 kgf*cm or 102.1 oz*in

– Speed at 7.4V – 0.13 sec/60 degrees

Cad File Download

Our brushless motor series of servos are easily identifiable with product names beginning with “BLA”. These servos provide great performance, durability, and reliability under the toughest conditions. With varying voltage, sizes, and torques available, there is a brushless Futaba servo for every project.

・Small brushless servo for airplanes

・Metal 1-4 gears

・Metal final gear

・S.BUS system

・Speed: 0.09sec/60°(7.4V) / 0.10sec/60°(6.6V)

・Torque: 6.7kgf・cm(7.4V) / 6.0kgf・cm(6.6V)

・Dimensions/weight: 27.2x13.0x30.5mm / 28g

TECHNICAL DATA

Servo Speed sec./60° (7,4V) LHV: 0,09

Servo Torque kg/cm (7,4V) LHV: 6,7

Gearbox Type: Metal

Weight (g): 28

Length (mm): NIMH

Wide (mm): 13

Height (mm): 30,5

Servo type: High Voltage

Cad File Download

Our brushless motor series of servos are easily identifiable with product names beginning with “BLA”. These servos provide great performance, durability, and reliability under the toughest conditions. With varying voltage, sizes, and torques available, there is a brushless Futaba servo for every project.

HPS-A703

New HPS motor and high frequency control for improved response in the HPS servo series for large aircraft

This is the HPBLS series servo for large aircraft that realizes amazing torque and low power consumption. The HPS series not only ensures amazing neutral accuracy and reliable torque, but also eliminates the previously trade-off between speed power and power consumption, achieving reliable power with low power consumption. The new HPS motor and high frequency control improve response.

This is the HPBLS series servo for large aircraft that achieves incredible torque and low power consumption .

The HPS series not only ensures amazing neutral accuracy and reliable torque,

Eliminate the trade-off between speed and power consumption that has been considered to exist until now.

It provides reliable power with low power consumption. The new HPS motor and high frequency control improve response.

・For large aircraft

・Metal 1-3 gears

・High-strength metal final gear

・Upper/middle/lower aluminum cases

・S.BUS system

・New control board

・High frequency control

・Speed: 0.12sec/60°(7.4V) / 0.13sec/60°(6.6V)

・Torque: 66.0kgf・cm(7.4V) / 61.0kgf・cm(6.6V)

・Dimensions/Weight: 40.5×21.0×39.4mm / 82g

*HPS-A703 requires a large current momentarily to achieve both high output and responsiveness. In the case of intense acrobatic flight, the power line may occasionally become unstable. For safety, when connecting one or more servos with the S.BUS system, please use a receiver capacitor (16V1800μF). For connection, please refer to the instruction manual.

Cad File Download
